Product Overview/产品概述:

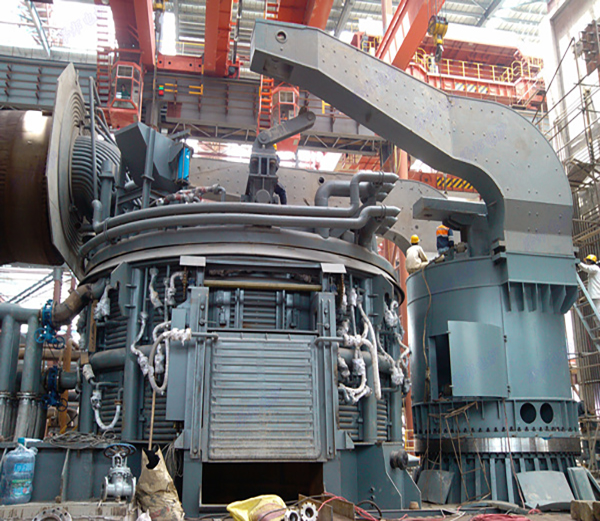

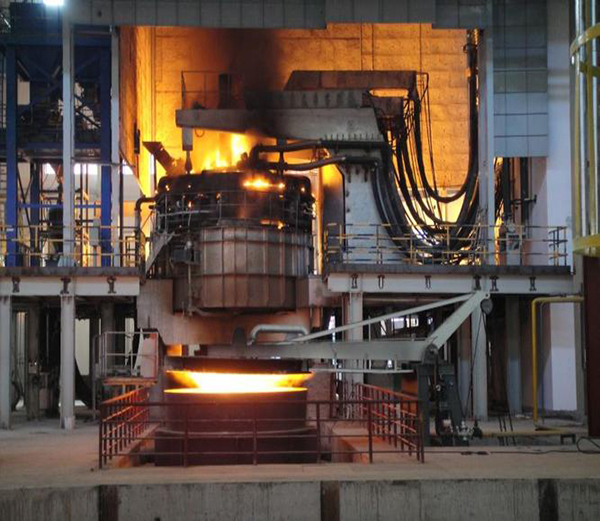

HX series three-phase steelmaking electric arc furnace is used to smelt high-quality carbon steel and various alloy steels. Its capacity ranges from 0.5 to 125 tons.
Product Introduction/产品介绍:
Equipment and features:
HX series three-phase steelmaking electric arc furnaces are divided into ordinary power, high power and ultra-high power according to power matching; they are divided into left operation and right operation according to operation mode; the furnace cover is a swing-open top charging type; the whole set is reasonably designed, reliable in operation and superior in performance.
Equipment composition
.Furnace body
It is divided into two types: steel trough tapping and eccentric bottom tapping. According to the power matching, there are traditional furnace shells and tubular water-cooled furnace shells.
.Tilting furnace mechanism
.Electrode lifting mechanism
It is divided into trolley mobile type and column lifting type; its driving mode is motor drive and hydraulic drive. The electrode arm has a new type of fully water-cooled conductive cross arm and an ordinary copper tube cross arm
.Furnace cover lifting and rotating mechanism
It is divided into a basic integral type and a basic separate type
.Cooling water and its monitoring and alarm system
.Hydraulic station and control valve system
The electrical control system adopts a new type of cross-frequency speed regulation-motor regulator or a microcomputer control-hydraulic regulator. And it can be configured with CRT display. The control and interlocking protection of the actions of each part of the equipment adopt PLC control.
