Product Overview/产品概述:

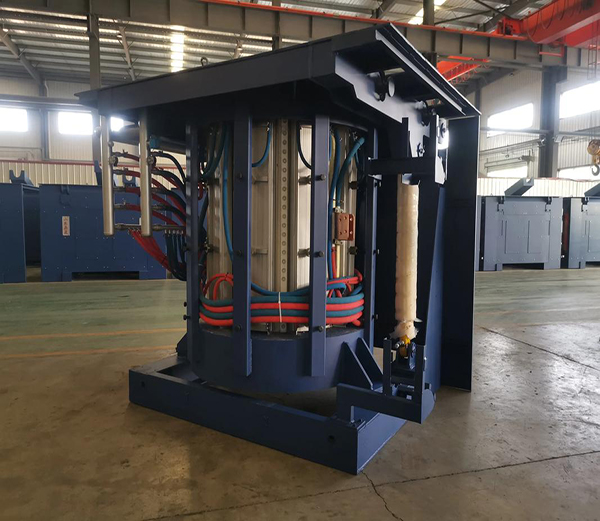

The medium frequency induction furnace is a kind of furnace that converts three-phase industrial frequency alternating current into direct current after rectification, and then converts the direct current into an adjustable current, which supplies the alternating current flowing through the capacitor and the induction coil, generates high-density magnetic lines in the induction coil, and cuts the metal material contained in the induction coil, generating a large eddy current in the metal material. This eddy current also has some properties of medium frequency current, that is, the free electrons of the metal itself flow in the metal body with resistance to generate heat.
Product Introduction/产品介绍:
Features of the medium frequency induction furnace series melting furnace:
(1) High melting efficiency, good power saving effect, compact structure, strong overload capacity.
(2) Low temperature around the furnace, less smoke and dust, and good working environment.
(3) Simple operation process and reliable melting operation.
(4) Uniform metal composition.
(5) Fast melting temperature rise, easy to control furnace temperature, and high production efficiency.
(6) High furnace utilization rate and convenient replacement of varieties.
(7) The long arc yoke shields leakage magnetic flux and reduces external magnetic resistance, shields leakage magnetic flux at both ends of the coil, and the arc-shaped inner side of the yoke cross-section is seamlessly attached to the outer wall, which increases the effective magnetic permeability area and provides better support for the coil. The forward and reverse rotation coils improve the efficiency of the system.
